Descripción

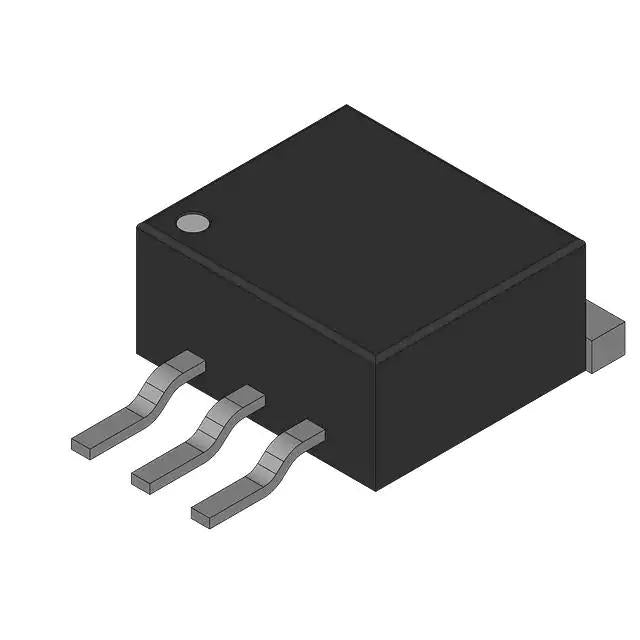

IPD135N03LG Infineon
Description: This is manufactured by Infineon Technologies. The manufacturer part number is IPD135N03LG. It is assigned with possible HTSUS value of 8542.39.0001. The typical Vgs (th) (max) of the product is 2.2v @ 250µa. The product has -55°c ~ 175°c (tj) operating temperature range. Moreover, the product comes in to-252-3, dpak (2 leads + tab), sc-63. The maximum gate charge and given voltages include 10 nc @ 10 v. It has a maximum Rds On and voltage of 13.5mohm @ 30a, 10v. It carries FET type n-channel. The drive voltage (maximum and minimum Rds On) of the product includes 4.5v, 10v. It is shipped in bulk package . The product has a 30 v drain to source voltage. The maximum Vgs rate is ±20v. The product carries maximum power dissipation 31w (tc). The products input capacitance at maximum includes 1000 pf @ 15 v. The product is available in surface mount configuration. The product coolmos, is a highly preferred choice for users. pg-to252-3-11 is the supplier device package value. The continuous current drain at 25°C is 30a (tc). This product use mosfet (metal oxide) technology. The product is designated with the ear99 code number.
Weight: 0.1kg
SKU: IPD135N03LG
Delivery: We ship via global express services, such as DHL, Fedex, Swiss Post.
Warranty: 3 Years AW warranty, for peace of mind.
