Descripción

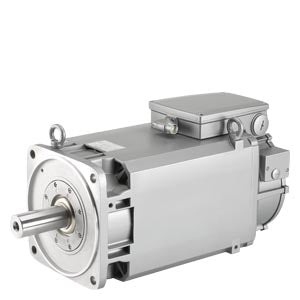

1PH8224-2FF10-2BB1 Siemens
Description: SIMOTICS M Compact synchronous motor 1500rpm, 101kW, 643Nm, 235A, 271V 1750rpm, 117kW, 638Nm, 235A, 315V 2000rpm, 118kW, 563Nm, 210A, 355V forced ventilation Direction of air flow NDE-->DE Degree of protection IP55 Absolute encoder 22-bit Single-turn and 12-bit multi-turn (encoder AM22DQ) with DRIVE-CLiQ interface DESIGN IM B3 (IMB6, IMB7, IMB8, IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE R/A; SHAFT A.FLANGE ACCURACY GR. R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE LEFT SIGNAL CONNECTION D-END
Weight: 580kg
SKU: 1PH82242FF102BB1
