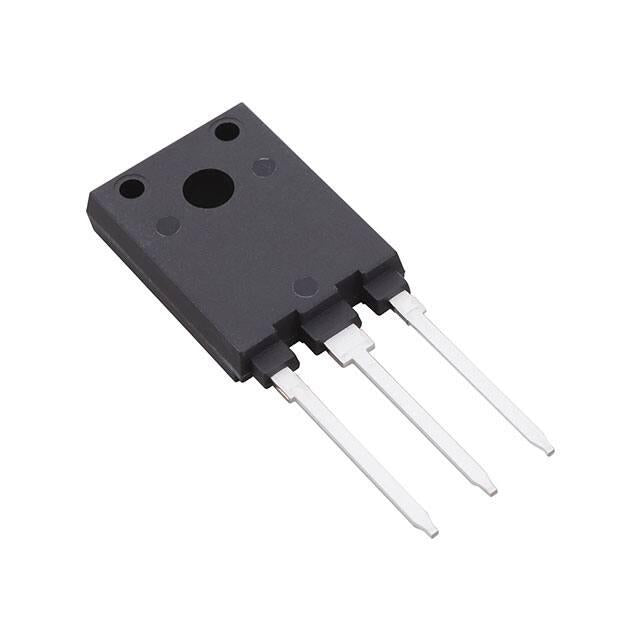

IKFW50N65ES5XKSA1 Infineon
Description: This is manufactured by Infineon Technologies. The manufacturer part number is IKFW50N65ES5XKSA1. The maximum collector current includes 74 a. It is assigned with possible HTSUS value of 8541.29.0095. The product is rohs3 compliant. Provide switching energy up to 860µj (on), 400µj (off). Features 1.7v @ 15v, 40a. The maximum collector emitter breakdown voltage of the product is 650 v. Td (onoff) value of 19ns130ns. The product has -40°c ~ 175°c (tj) operating temperature range. It carries standard input type. Moreover, the product comes in to-247-3. Features 95 nc gate charge. It has a trr (reverse recovery time) of 69 ns. In addition, it is reach unaffected. Test condition included 400v, 40a, 10ohm, 15v. It is shipped in tube package . Its typical moisture sensitivity level is not applicable. It has a long 60 weeks standard lead time. Features an IGBT trench field stop type. With a current - collector pulsed of [Current - Collector Pulsed (lcm)] . The product is available in through hole configuration. The product trenchstop 5, is a highly preferred choice for users. pg-hsip247-3-2 is the supplier device package value. The maximum power of the product is 127 w. Moreover, it corresponds to ikfw50, a base product number of the product. The product is designated with the ear99 code number.
Weight: 0.1kg
SKU: IKFW50N65ES5XKSA1
Delivery: We ship via global express services, such as DHL, Fedex, Swiss Post.
Warranty: 3 Years AW warranty, for peace of mind.
