Description
IRF7463TRPBF Infineon

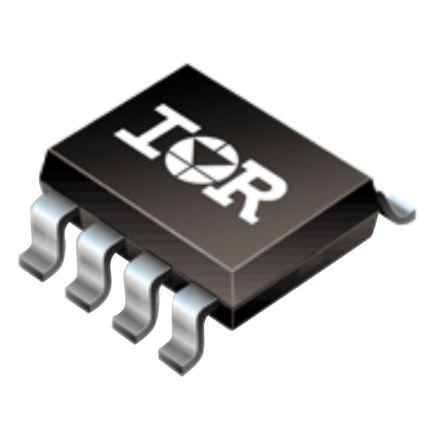

Description: This is N-channel MOSFET 14 A 30 V IRF7463 8-Pin SOIC manufactured by Infineon. The manufacturer part number is IRF7463TRPBF. While 14 a of maximum continuous drain current. Furthermore, the product is 4mm wide. The product offers single transistor configuration. It has a maximum of 30 v drain source voltage. The product carries 2v of maximum gate threshold voltage. The package is a sort of soic. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 0.6v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 34 nc @ 4.5 v. The product is available in [Cannel Type] channel. Its accurate length is 5mm. It contains 8 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 2.5 w maximum power dissipation. The product irf7463, is a highly preferred choice for users. It features a maximum gate source voltage of ±12 v. In addition, the height is 1.5mm. Whereas, the minimum operating temperature of the product is -55 °c. Its forward diode voltage is 1.3v . It provides up to 20 mω maximum drain source resistance.
Weight: 0.1kg
SKU: IRF7463TRPBF
Delivery: We ship via global express services, such as DHL, Fedex, Swiss Post.
Warranty: 3 Years AW warranty, for peace of mind.
