Description

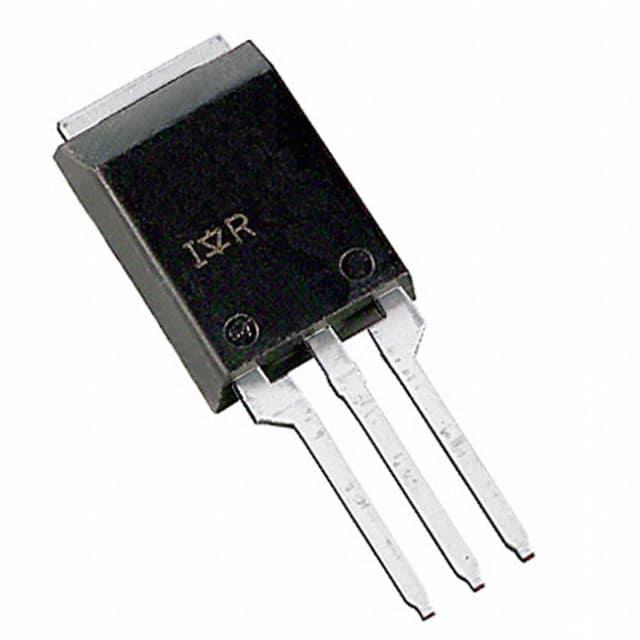

IRFBA1405P Infineon
Description: This is manufactured by Infineon Technologies. The manufacturer part number is IRFBA1405P. It is assigned with possible HTSUS value of 8541.29.0095. The typical Vgs (th) (max) of the product is 4v @ 250µa. The product has -40°c ~ 175°c (tj) operating temperature range. Moreover, the product comes in to-273aa. It has a maximum Rds On and voltage of 5mohm @ 101a, 10v. The maximum gate charge and given voltages include 260 nc @ 10 v. The product is rohs non-compliant. In addition, it is reach unaffected. It carries FET type n-channel. The drive voltage (maximum and minimum Rds On) of the product includes 10v. It is shipped in tube package . The product has a 55 v drain to source voltage. The maximum Vgs rate is ±20v. Its typical moisture sensitivity level is 1 (unlimited). The product carries maximum power dissipation 330w (tc). The products input capacitance at maximum includes 5480 pf @ 25 v. The product is available in through hole configuration. The product hexfet, is a highly preferred choice for users. super-220 (to-273aa) is the supplier device package value. The continuous current drain at 25°C is 174a (tc). This product use mosfet (metal oxide) technology. The product is designated with the ear99 code number.
Weight: 0.1kg
SKU: IRFBA1405P
Delivery: We ship via global express services, such as DHL, Fedex, Swiss Post.
Warranty: 3 Years AW warranty, for peace of mind.
