Descrizione

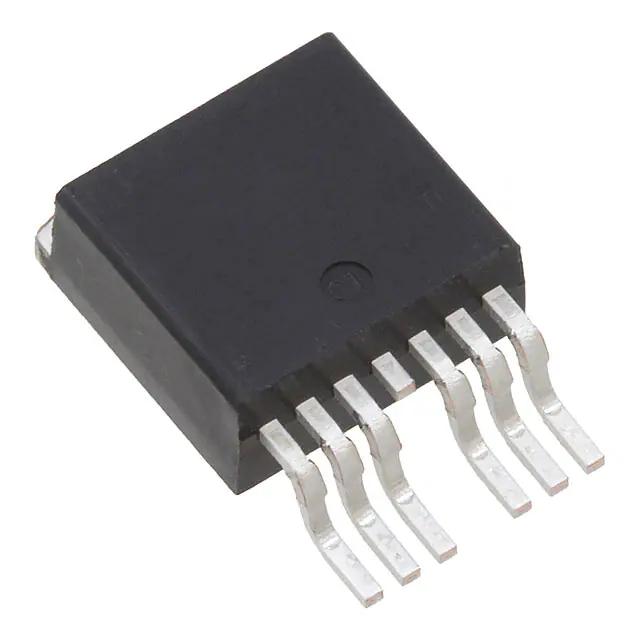

AUIRFS3107-7TRL Infineon
Description: This is manufactured by Infineon Technologies. The manufacturer part number is AUIRFS3107-7TRL. It is assigned with possible HTSUS value of 8541.29.0095. The typical Vgs (th) (max) of the product is 4v @ 250µa. The product has -55°c ~ 175°c (tj) operating temperature range. Moreover, the product comes in to-263-7, d²pak (6 leads + tab). The maximum gate charge and given voltages include 240 nc @ 10 v. The product is rohs3 compliant. In addition, it is reach unaffected. It has a maximum Rds On and voltage of 2.6mohm @ 160a, 10v. It carries FET type n-channel. It is shipped in tape & reel (tr) package . The product has a 75 v drain to source voltage. Its typical moisture sensitivity level is 1 (unlimited). The product carries maximum power dissipation 370w (tc). The products input capacitance at maximum includes 9200 pf @ 50 v. The product is available in surface mount configuration. The product hexfet, is a highly preferred choice for users. d2pak (7-lead) is the supplier device package value. The continuous current drain at 25°C is 240a (tc). This product use mosfet (metal oxide) technology. The product is designated with the ear99 code number.
Weight: 0.1kg
SKU: AUIRFS31077TRL
Delivery: We ship via global express services, such as DHL, Fedex, Swiss Post.
Warranty: 3 Years AW warranty, for peace of mind.
