Description

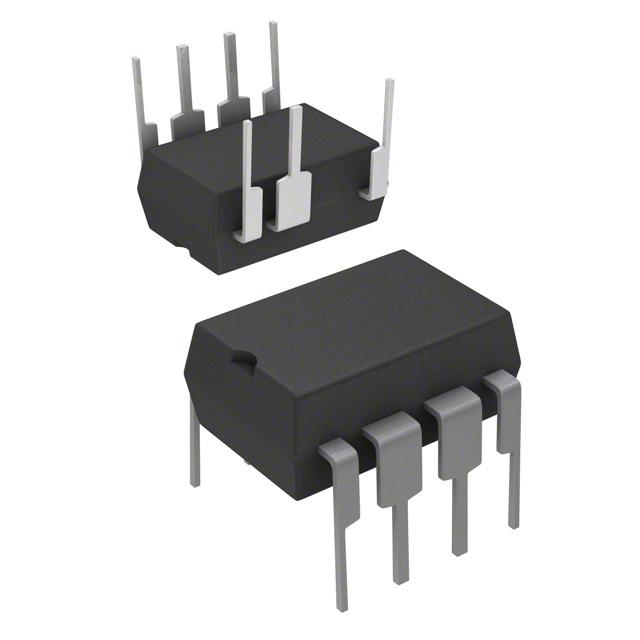

ICE2QR2280Z1XKLA1 Infineon
Description: This is manufactured by Infineon Technologies. The manufacturer part number is ICE2QR2280Z1XKLA1. It bears start up voltage of 18 v. It is assigned with possible HTSUS value of 8542.39.0001. pg-dip-7-1 is the supplier device package value. The product features power and watts of 54 w. The nominal breakdown voltage of 800v. The supply voltage of a bespoke product includes 10.5v ~ 27v. Moreover, the product comes in 8-dip (0.300, 7.62mm), 7 leads. Internal switch options: yes. The switching frequency of the standard product is 52khz. In addition, it is reach unaffected. The product has -40°c ~ 150°c (tj) operating temperature range. Topology includes flyback. Provides 50% duty cycles. It is shipped in tube package . Features isolated output isolation. Its typical moisture sensitivity level is 1 (unlimited). The product is available in through hole configuration. The product coolmos, coolset-q1, is a highly preferred choice for users. Fault protection features include current limiting, over load, over temperature, over voltage. Moreover, it corresponds to ice2qr2280, a base product number of the product. The product is designated with the ear99 code number.
Weight: 0.1kg
SKU: ICE2QR2280Z1XKLA1
Delivery: We ship via global express services, such as DHL, Fedex, Swiss Post.
Warranty: 3 Years AW warranty, for peace of mind.
