Description

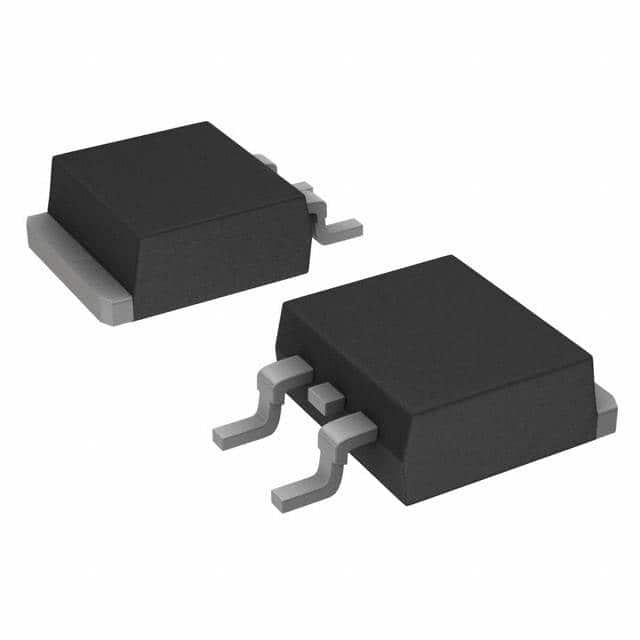

IRF3704ZCS Infineon
Description: This is manufactured by Infineon Technologies. The manufacturer part number is IRF3704ZCS. It is assigned with possible HTSUS value of 8541.29.0095. The typical Vgs (th) (max) of the product is 2.55v @ 250µa. The product has -55°c ~ 175°c (tj) operating temperature range. Moreover, the product comes in to-263-3, d²pak (2 leads + tab), to-263ab. It has a maximum Rds On and voltage of 7.9mohm @ 21a, 10v. The maximum gate charge and given voltages include 13 nc @ 4.5 v. The product is rohs non-compliant. In addition, it is reach unaffected. It carries FET type n-channel. The drive voltage (maximum and minimum Rds On) of the product includes 4.5v, 10v. It is shipped in tube package . The product has a 20 v drain to source voltage. The maximum Vgs rate is ±20v. Its typical moisture sensitivity level is 1 (unlimited). The product carries maximum power dissipation 57w (tc). The products input capacitance at maximum includes 1220 pf @ 10 v. The product is available in surface mount configuration. The product hexfet, is a highly preferred choice for users. d2pak is the supplier device package value. The continuous current drain at 25°C is 67a (tc). This product use mosfet (metal oxide) technology. The product is designated with the ear99 code number.
Weight: 0.1kg
SKU: IRF3704ZCS
Delivery: We ship via global express services, such as DHL, Fedex, Swiss Post.
Warranty: 3 Years AW warranty, for peace of mind.
